iotDrag the steps, say which pin each part is wired to and send it to the board over the USB cable. Nothing to install and no account to create. Whenever you want, open the Python or C++ code the IDE wrote.
One program, two doors: Maker for schools and workshops, Industrial for training and the factory floor. Which one should I pick?
To upload over USB: Google Chrome or Microsoft Edge on a computer.
Each card is a real instruction. The IDE turns the list of cards into code and shows that code alongside, line by line.

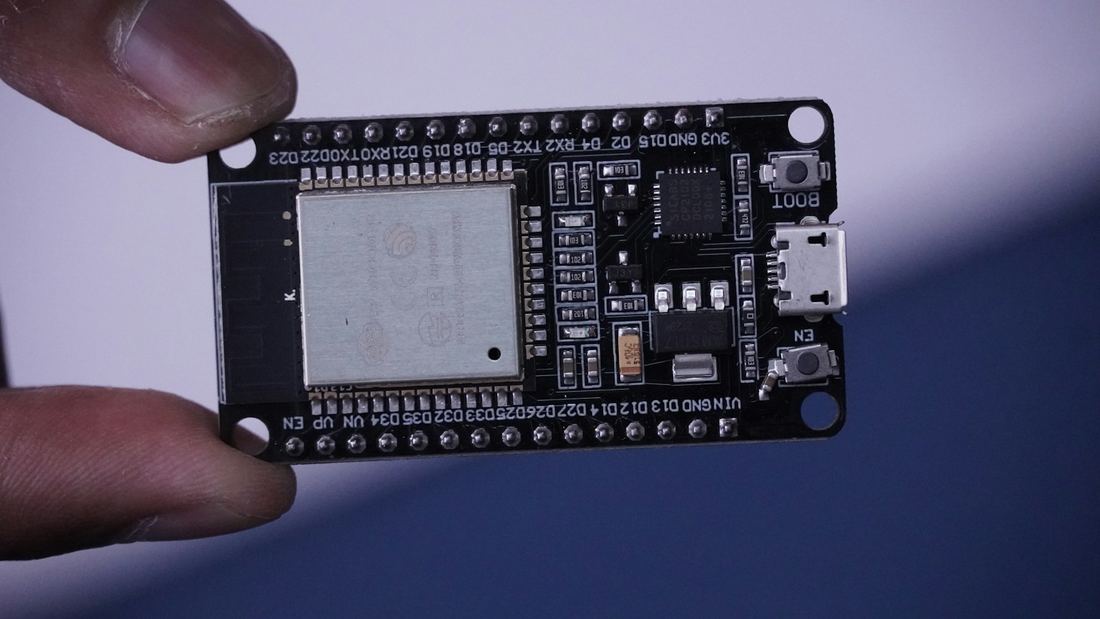

ESP32 or Arduino Nano. The IDE shows only the pins that exist on the chosen board and warns you when a pin won’t work for that part.
Drag cards like "move servo", "show the distance" and "if the distance is less than". In each one, you say which pin the part is wired to.
On the ESP32, the program goes over the USB cable straight from the browser. For the Nano, the IDE hands you C++ code ready for the Arduino IDE.
Four joints, one eye and one voice. Each part has its own cards in the IDE, and each card asks which pin the part is wired to: the same program works for whoever built the arm their own way.
Base, shoulder, elbow and gripper. Each one turns from 0 to 180 degrees.
Measures the distance to the object in front of the gripper, from a few centimeters to a few meters.
Two axes and a button each: enough to move all four joints by hand.
Beeps to give a signal: object nearby, position saved, end of the program.
| Part | Arduino Nano | ESP32 (DevKit) |
|---|---|---|
| Base servo | D3 | GPIO 13 |
| Shoulder servo | D5 | GPIO 25 |
| Elbow servo | D6 | GPIO 26 |
| Gripper servo | D9 | GPIO 27 |
| Joystick 1 (X, Y, button) | A0, A1, D2 | GPIO 32, 33, 21 |
| Joystick 2 (X, Y, button) | A2, A3, D4 | GPIO 34, 35, 22 |
| Ultrasonic (Trig, Echo) | D7, D8 | GPIO 18, 19 (with divider) |
| Buzzer | D10 | GPIO 23 |
It’s a suggestion, not a rule: in the IDE you change the pin on each card. Two things always apply. The four servos draw too much current for the USB port, so they run on a separate 5 V supply, with its GND tied to the board’s. And on the ESP32, the ultrasonic sensor’s Echo pin goes through a voltage divider, because the module outputs 5 V and the board works at 3.3 V.
Why these pins (article in Portuguese)The logic that makes the arm pick up an object in class is the same as in an automated cell. That’s why there is a single IDE with two doors: pick yours with the button.
Solid colored blocks, big letters and round corners. Readable on the projector from the back of the room, and beginners find each piece by its color.
White cards, color only on the edge and the code always in view. It looks like an engineering tool, for people programming sequence, condition, sensor and actuator.
The program is the same in both: the same cards, the same pins and the same code on the board. A file saved in Maker opens in Industrial, and the other way around.
The IDE generates the program in MicroPython and sends it over the USB cable, straight from the browser. The program is saved as main.py and runs every time the board powers up, even away from the computer.
Needs: MicroPython flashed on the ESP32, and Chrome or Edge on the computer.
The IDE generates the C++ code for the program you built, using the Servo library. You download the .ino file or copy the code and upload it with the Arduino IDE, like any other sketch.
Needs: the Arduino IDE on the computer. Nanos with the CH340 converter may ask for a driver on Windows.
From the first block program to the servo pulse and the ultrasonic echo. Each article ends with what to do in the IDE.
The articles are published in Portuguese on iotdata.com.br and open in a new tab. Your browser can translate them.
No. The IDE opens in the browser. On some Windows computers, boards with the CH340 USB converter, common on the Nano and on many ESP32 boards, ask for the chip maker’s driver the first time.
Building the program, yes. Sending it to the board over USB uses Web Serial, which exists in Google Chrome and Microsoft Edge for desktop. In Firefox, in Safari and on the iPad, you build the program and download the code.
No. The program is saved in the browser itself and can be downloaded as a file. If you use another computer, take the file with you.
MicroPython flashed on the board. With it, the IDE sends the program as main.py and the board runs it every time it powers up.
The IDE generates the C++ code for the program you built. You copy it or download the .ino file and upload it with the Arduino IDE, using the Servo library that comes with it.
Only the way in and the look. The cards, the pins, the code that goes to the board and the program file are the same: a program saved in Maker opens in Industrial, and the other way around.
Yes. The code panel shows, as you build, the Python for the ESP32 or the C++ for the Nano. It’s the same text that goes to the board.
Yes: the editor, the cards, the warnings and the comments in the generated code. A program saved in one language opens the same way in English, Spanish or Portuguese.
Using it with a class, in a technical course or in factory training? Talk to engineering: the people who reply are the people who built the robot.
